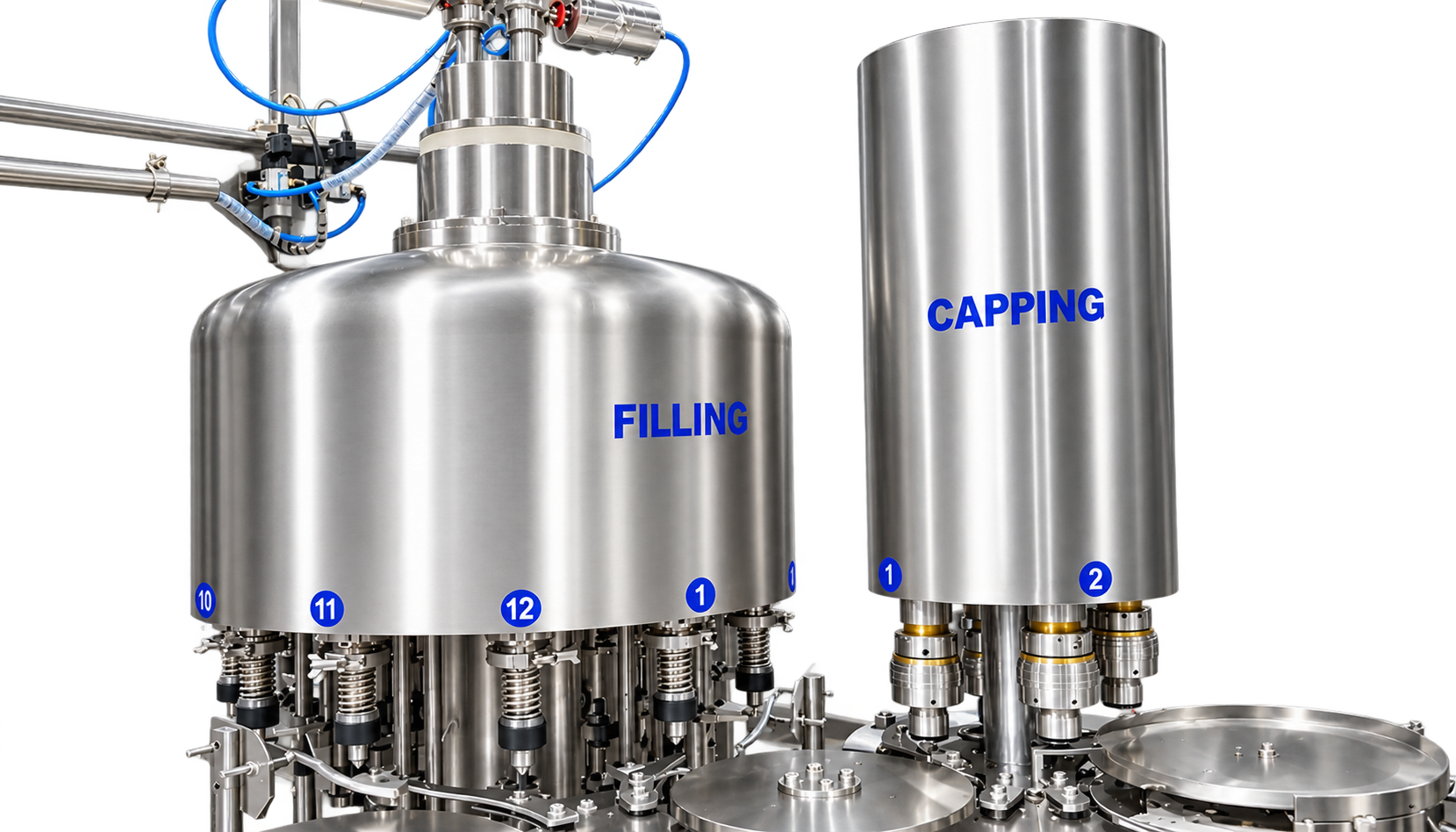

Rotary, monoblock construction Juice Filling Machine in SS 304, with fully neck holding — fully adaptable to all sizes from 200 to 2000 ml. No bottle then no fill and capping, ensuring no resources are wasted. Available across capacities from 30 BPM to 250 BPM (@1000 ml).
| Model (BPM @ 1000 ml) | Washing Nozzles | Filling Valves | Capping Heads | Dimensions (L×W×H) | Main Drive Motor | Hopper Motor | Air | Power Consumption |
|---|---|---|---|---|---|---|---|---|
| 30 BPM | 6 | 6 | 3 | 5.0 ft × 5.0 ft × 8.5 ft | 2 HP | 0.5 HP | 1.5 C.F.M @ 40 PSI | 4 HP |
| 40 BPM | 8 | 8 | 4 | 6.0 ft × 5.0 ft × 8.5 ft | 2.00 HP | 1 HP | 1.5 C.F.M @ 40 PSI | 5 HP |
| 60 BPM | 12 | 12 | 4 | 7.5 ft × 6.0 ft × 8.5 ft | 3 HP | 1 HP | 1.5 C.F.M @ 60 PSI | 6 HP |
| 90 BPM | 18 | 18 | 6 | 8.0 ft × 6.0 ft × 8.5 ft | 5 HP | 1 HP | 1.5 C.F.M @ 60 PSI | 7 HP |
| 120 BPM | 22 | 22 | 8 | 8.0 ft × 6.5 ft × 8.5 ft | 7 HP | 1.5 HP | 1.5 C.F.M @ 60 PSI | 10 HP |
| 150 BPM | 24 | 24 | 8 | 12 ft × 8.0 ft × 8.5 ft | 7 HP | 1.5 HP | 1.5 C.F.M @ 60 PSI | 10 HP |
| 200 BPM | 40 | 40 | 10 | 13 ft × 12 ft × 8.5 ft | 7.5 HP | 1.5 HP | 1.5 C.F.M @ 60 PSI | 12 HP |
| 250 BPM | 30 | 50 | 12 | 14.0 ft × 9.0 ft × 8.5 ft | — | 1.5 HP | 1.5 C.F.M @ 60 PSI | 13 HP |
Configuration shown as (Head Rinsing / Head Filling / Head Capping): 30 BPM — 6/6/3 · 40 BPM — 8/8/4 · 60 BPM — 12/12/4 · 90 BPM — 18/18/6 · 120 BPM — 22/22/8 · 150 BPM — 24/24/8 · 200 BPM — 40/40/10 · 250 BPM — 30/50/12.
| Model | 250 ML | 500 ML | 1000 ML | 2000 ML |
|---|---|---|---|---|
| 30 BPM | 40 BPM | 40 BPM | 30 BPM | 10 BPM |
| 40 BPM | 50 BPM | 45 BPM | 40 BPM | 15 BPM |
| 60 BPM | 70 BPM | 70 BPM | 60 BPM | 30 BPM |
| 90 BPM | 120 BPM | 120 BPM | 90 BPM | 50 BPM |
| 120 BPM | 140 BPM | 140 BPM | 120 BPM | 60 BPM |
| 150 BPM | 180 BPM | 180 BPM | 150 BPM | 75 BPM |
| 200 BPM | 220 BPM | 220 BPM | 200 BPM | 100 BPM |
| 250 BPM | 270 BPM | 270 BPM | 250 BPM | 120 BPM |
